Near hit with detrained passengers on track, at Kilbride, New South Wales, on 22 May 2014

At 1010 on Thursday 22 May 2014, a south bound (Up^[1]) loaded Pacific National coal train (SF630) and a north bound (Down) NSW Trains’ XPT passenger service (NT33) were approaching Paterson, in the Hunter region of New South Wales. ARTC train control planned for SF630 to enter the Paterson loop to allow NT33 to pass on the single line. NT33 was scheduled to stop at Paterson station to pick-up passengers as required and then depart at 1020.

At 1013 SF630 was entering Paterson crossing loop (see Figure1). As it entered the crossing loop its lead locomotive 8215 suffered a mechanical problem. This forced the train to come to a stand with a portion of the train still standing foul of the main line. As a result, NT33’s departure path from Paterson station platform was blocked.

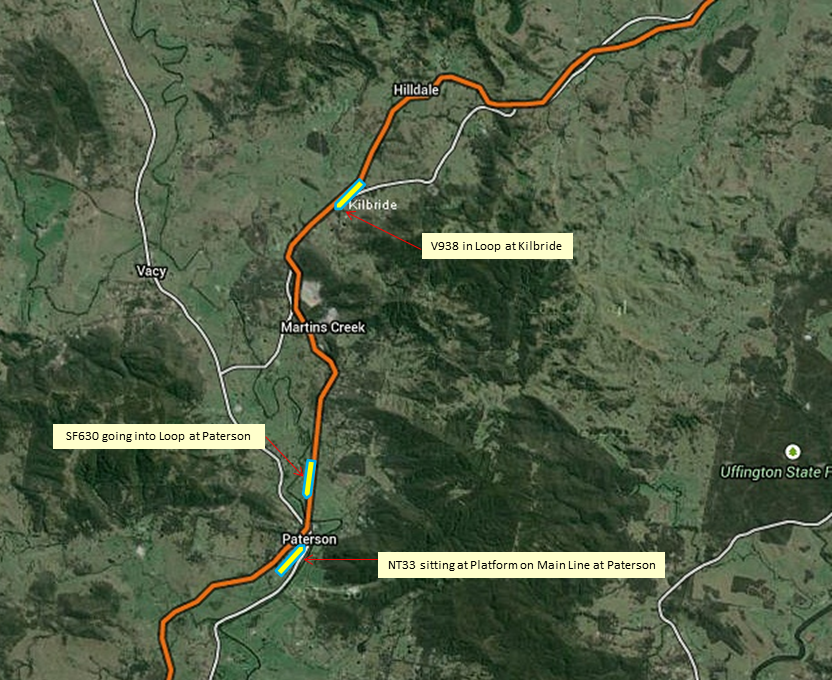

Figure 1: Position of trains SF630 and NT33 at Paterson, and train V938 at Kilbride

Source: Google Earth, annotated by ATSB

Meanwhile, a two-car Hunter passenger service operated by NSW Trains (V938), had departed Dungog and was also travelling south behind SF630. At 1022 V938 entered the loop at Kilbride as scheduled and waited for NT33 to pass. V938 was scheduled to depart Kilbride at 1029 towards Newcastle.

At 1024 the Broadmeadow (Newcastle) based ARTC Train Transit Manager (TTM) called the NSW Trains’ Daily Operations Continuity Centre Shift Supervisor (DOCC SS) to advise of the failure of SF630. The ARTC TTM also discussed the delays to XPT NT33 and Hunter service V938 and asked to clarify which service to give preference to, once the line was clear.

At 1028 the DOCC SS passed the delay information onto the Sydney Trains’ Rail Management Centre Shift Manager (RMC SM).

Being aware of the potential delay to V938, the RMC SM started to action, with his Train Crew Liaison Officer (TCLO), alternative road transport for the passengers on train V938.

At 1057 the TCLO contacted the Guard of V938 on his work issued mobile phone enquiring about passenger numbers and a discussion took place on the possible organisation of a mini bus or changing ends and returning to a platform. The Guard advised the TCLO that there were six passengers.

By 1100 the RMC SM advised the TCLO that a bus will be ordered and to advise the crew of V938.

At 1111 the RMC SM contacted ARTC TTM and advised a bus had been ordered to pick up passengers on V938.

Meanwhile, the crew of SF630 had identified the source of the mechanical problem and found a temporary solution that allowed the train to be moved clear of the main line.

At 1120 the ARTC TTM advised the RMC SM that SF630 was moving into the loop at Paterson and XPT NT33 will proceed north.

At approximately 1125, the bus arrived at Kilbride and accessed the rail corridor via a maintenance access road. Once in the rail corridor, the bus parked alongside V938. Despite the close proximity of pedestrian access between the train and the bus, it was deemed unsuitable. The guard instructed the bus driver to move to the Mirari road level crossing located approximately 110 m south of the Kilbride crossing loop.

At 1127 SF630 had moved into the Paterson crossing loop. This cleared the track for NT33 to continue its journey north towards Kilbride.

At Kilbride, the crew of V938 had informed the passengers that a bus had arrived and that they would be required to walk along the track to the Mirari road level crossing. The guard and driver assisted five passengers to disembark the train via the crew compartment door of the front car. The passengers were instructed to walk in single file within the four foot^[2] of the track.

NT33 was approaching Kilbride at 118 km/h.^[3] As NT33 approached the Mirari road level crossing, the driver observed a bus at the level crossing and people walking on the track approximately 300 m ahead of the train. The driver of NT33 immediately made an emergency brake application and sounded the horn continuously as he brought the train to a stand approximately 80 m short of the bus and people.

The crew of V938 had completed assisting five of their six passengers off the train when the guard observed the level crossing activate and looked up the track to see NT33 coming towards them. The guard gave a verbal warning to the passengers to get off the track before noticing NT33 had already stopped (see Figure 2).

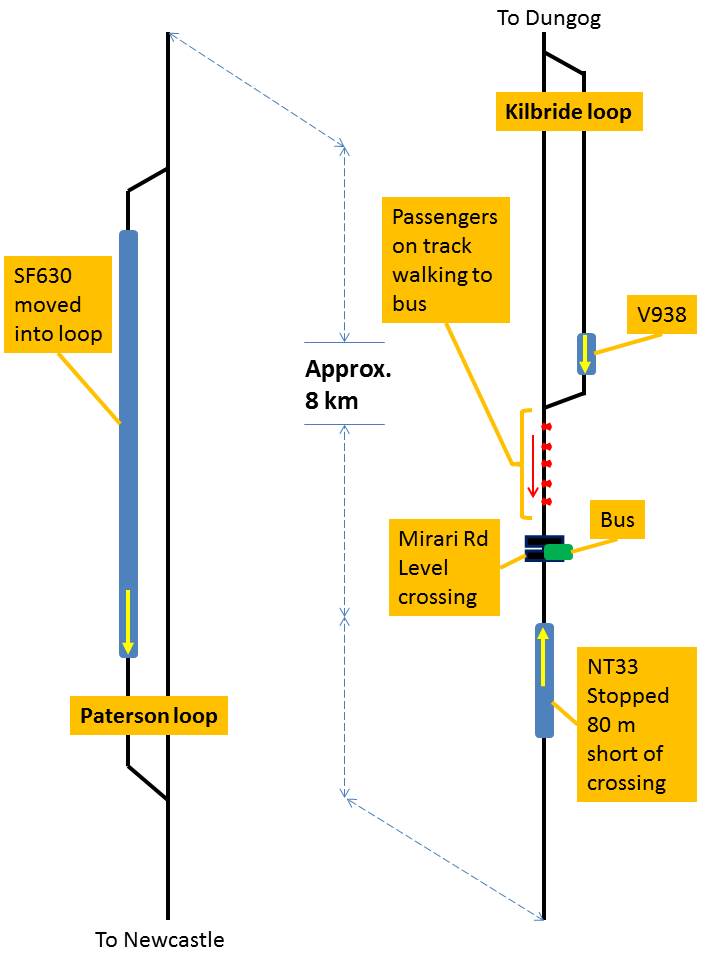

Figure 2: Position of trains, bus and people at time of incident

Source: ATSB

Post-occurrence

The driver of NT33 reported the incident to the DOCC SS. The driver advised of nearly hitting a number of people walking on the track and the presence of a bus at the Mirari road level crossing.

The guard on V938 rang the TCLO and reported the incident. The TCLO advised the RMC SM and the DOCC SS.

The RMC SM conferred with the ARTC TTM about the passengers detraining. The TTM checked with the ARTC Network Controller (NC) and confirmed that no authorisation or track protection for the detrainment had been given.

The RMC SM later advised the ARTC TTM that five passengers of V938 had walked up to the level crossing and boarded the bus while one passenger remained on the train to disembark at Maitland Station.

NSW Trains conducted drug and alcohol testing on the crew of V938 on arrival at Newcastle station, both driver and guard returned negative results. NSW Trains revoked their rail safety worker cards pending internal investigation.

The driver of NT33 continued in service to Taree where a crew change occurred as planned.

__________

1. In NSW a train travelling in the Up direction is heading toward Central station, Sydney and a train heading away from Central station, Sydney is travelling in the Down direction.
2. The four foot is the area between the rails of the same line.
3. Track speed limit for XPT services in the section was 120km/h.

Incident location

The incident occurred at Kilbride in the Hunter Valley, NSW. Kilbride is a crossing loop located at 223.468 kms by rail north from Central railway station, Sydney^[4] (see Figure 3).

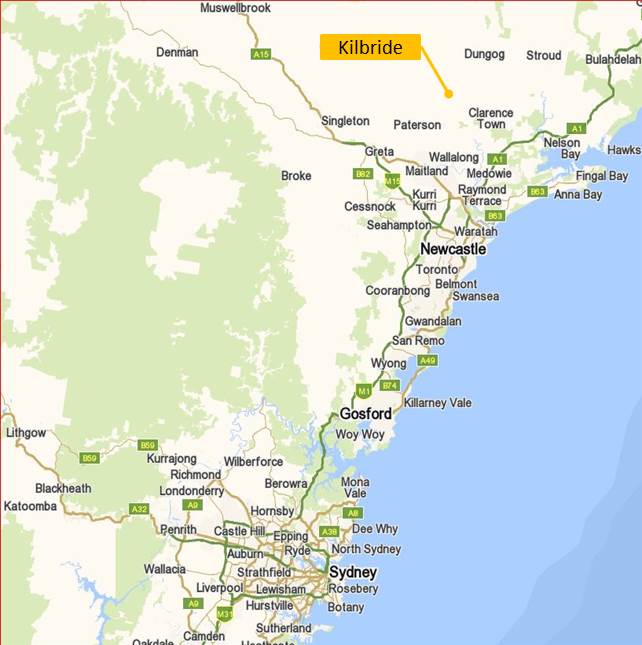

Figure 3: Location of Kilbride

Source: Whereis (Annotated by ATSB)

Kilbride is situated 10 km from the township of Paterson. The rail infrastructure at Kilbride consists of a crossing loop that is used to allow trains to pass on the single line. The track is a single standard gauge line that predominantly carries a mix of passenger and freight trains. The posted track speed for the main line between Paterson and Kilbride was 120 km/h for XPT services.

Environmental conditions

The Bureau of Meteorology records for Paterson, indicated a maximum temperature of 24.9 degrees and a minimum of 9.2 degrees, approximately 10 km from Kilbride. The ATSB determined that the environmental conditions were not a factor in the incident.

Organisational change and transition

At the time of the incident Sydney Trains and NSW Trains were in a transitional period.

From 1 January 2004 until 30 June 2013, Rail Corporation New South Wales (RailCorp) provided metropolitan and intercity passenger rail services via CityRail and regional and interstate services via CountryLink. RailCorp also owned and maintained the Metropolitan Rail Network (MRN) and provided access to freight and third-party operators in the metropolitan area.

From July 2013 RailCorp’s operation and maintenance functions were transferred to Sydney Trains and NSW Trains, leaving RailCorp as an asset owner.^[5]

In the transition from RailCorp to Sydney Trains and NSW Trains a Services Contract^[6] and an Operational Interface Protocol (OIP)^[7] were developed to identify the roles, responsibilities and limits of authority of key operational personnel throughout the change.

Parties involved in the incident

At the time of the incident, there were three main rail network infrastructure managers (RIM) in NSW. Each RIM was responsible for controlling train operations and maintaining track within their respective networks. They each imposed a strict set of network rules and procedures to provide safe working on their network. Each RIM was also responsible for ensuring competent people were in place to execute their safe working rules and procedures. Rolling stock operators (RSO) were required to follow the network rules and procedures for the relevant network they were operating on.

The three RIM’s in NSW were:

• The Australian Rail Track Corporation (ARTC) – responsible for the NSW Interstate, Hunter Valley and Metropolitan Freight Network.
• Sydney Trains – assumed responsibility for the MRN from RailCorp.
• John Holland Rail – responsible for the Country Regional Network (CRN) (see Figure 4).

John Holland CRN was not involved in this incident.

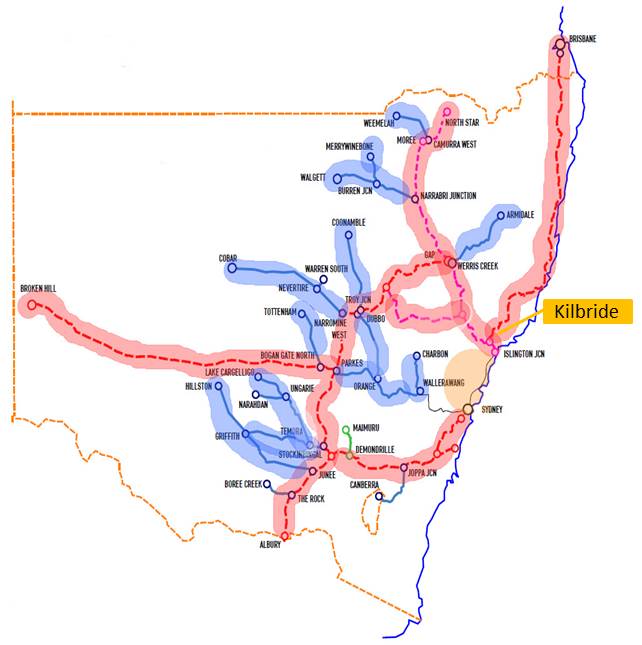

Figure 4: Rail infrastructure networks within NSW

Source: John Holland CRN Rail Network Map

ARTC

Since 2004, ARTC has provided access for above rail operators to its rail network. Their network spans five states in Australia^[8]. It manages and maintains approximately 8,500 km of rail network. ARTC developed Network Rules and Procedures that all users must abide by when accessing the ARTC network.

The main line and crossing loops between Kilbride and Paterson are part of the ARTC network. ARTC is responsible for track maintenance, signalling, train control and incident management functions in this corridor.

ARTC Train Transit Manager (TTM)

The TTM manages the transit of trains across an area of the ARTC network they are responsible for, in accordance with RSO’s access contracts. While the TTM is concerned with safe working across the network, they are also concerned with service delivery and ensuring access is granted in line with RSO’s requirements.

The TTM supervises a number of Network Controllers.

ARTC Network Controller (NC)

The NC implements plans and manages the movement of trains over the NC’s allotted portion of the ARTC network. This includes recording of train performance and carrying out communication with above rail operators on the network. This position is primarily concerned with ensuring safe working across the ARTC network.

ARTC’s NC (Coast A board) was in charge of train control and safe working in the Kilbride area at the time of the incident.

Sydney Trains

Sydney Trains is a NSW State Government Agency. It has responsibility and authority for all suburban rail infrastructure management and train control in the Sydney Metropolitan area bounded by Islington Junction, Lithgow, Macarthur and Bomaderry.

Sydney Trains is also the rollingstock operator for the Suburban Fleet.^[9]

Prior to July 2013, RailCorp was responsible for service delivery of the suburban and intercity fleets and operational management of the MRN. Post 2013, Sydney Trains’ responsibility and authority was limited to service delivery for the suburban fleet and operational management of the MRN.

Sydney Trains’ control centre for train movements through their network is located at Central Station. It is called the Rail Management Centre (RMC). A number of service delivery and network control functions reside within this complex.

Sydney Trains Rail Management Centre Shift Manager (RMC SM)

Prior to July 2013, the RMC SM had responsibility and authority for service delivery of the suburban, interstate and intercity (intrastate) fleets and the operational management of the MRN. The RMC SM supervised a number of TCLO’s as well as staff primarily concerned with network control and security on the MRN.

Post July 2013, as the service delivery of intercity and interstate passenger services had transferred to NSW Trains, the RMC SM’s responsibilities and authorities were focused on service delivery of the suburban fleet only and the operational management of the MRN.

Sydney Trains Train Crew Liaison Officer (TCLO)

The TCLO was responsible for supporting Sydney Trains’ train crew. Primarily, the TCLO managed such issues as crew relief, rostering and support for business continuity. Their activities also included organising support buses for passenger detrainments from Sydney Trains and NSW Trains passenger services on the MRN.

NSW Trains

Prior to July 2013, RailCorp’s division CountryLink was responsible for above rail operations of the XPT and Xplorer fleets. Post July 2013, NSW Trains became the accredited RSO for the XPT, Xplorer, and Intercity Fleets.

Within NSW, NSW Trains operates over the MRN, CRN and ARTC networks. NSW Trains are required to apply the rules and procedures for the relevant network they are operating on. NSW Trains was the RSO for NT33 and V938.

NSW Trains Daily Operations Continuity Centre Shift Supervisor (DOCC SS)

At the time of the incident the DOCC SS was responsible for business continuity of regional (interstate) passenger train services across NSW. The passenger train services included; XPT, Xplorer and Intercity Fleets. The DOCC SS was also responsible for organising alternative travel arrangements for NSW Train services operating outside the MRN. The DOCC SS was seated in the RMC along with the RMC SM and TCLO.

NT33

NT33 consisted of two XPT power cars and seven trailer cars with a length of 155 m. NT33 was timetabled to depart Paterson at 1020. However, NT33 departed 76 minutes late due to the failure of SF630.

V938

V938 was a diesel multiple unit (DMU) consisting of two Hunter rail cars. It measured 51 m in length. At the time of the incident V938 was carrying six passengers, a driver and a guard.

V938 was being held in the Kilbride passing loop at starting signal 05 12 L (222.779 km) waiting for NT33 to pass on the main line. V938 had been delayed over 60 minutes before the bus arrived.

Driver of V938

Training and competency records show the driver had been driving passenger services for NSW Trains and their predecessor CountryLink since 2008. The driver held appropriate competencies and qualifications for the relevant rolling stock and systems of safe working. The driver also had the required route knowledge for the north coast line.

On the day of the incident, the driver had signed on for duty at 0810.

Guard of V938

Training and competency records show he commenced training as a freight train guard in 1982. The guard had worked intercity services, as a guard, in the Newcastle area since 1987. The guard was qualified in safe working systems for passenger service operations. The guard also had the required route knowledge for the north coast rail line.

On the day of the incident, the guard had signed on for duty at 0449.

Pacific National (PN)

PN is a national rail freight RSO. PN was the operator of SF630 at the time of the incident.

Coal train SF630

SF630 comprised of three locomotives hauling 72 loaded wagons. Its total length was approximately 1700 m.

At 1024 on the day of the incident, just prior to Paterson, the lead locomotive suffered an air compressor problem. This resulted in the train losing its air and the brakes automatically^[10] applying. As a result, SF630 was stranded partially on the main line blocking all other traffic.

By 1118, the crew had temporarily fixed the problem and advised the ARTC NC they had gained sufficient air to release the brakes. Consequently, SF630 was permitted to move into the Paterson loop clear of the main line.

Although SF630 delayed train operations approaching Kilbride, the ATSB deemed its loss of air did not directly contribute to the safe working incident.

__________

4. All kilometres are measured from No.1 platform at Central railway station, Sydney Terminal. The kilometres shown for Kilbride location is referenced in the ARTC NSW Curve and Gradient Diagrams: Section 1- North and Hunter Valley publication.
5. www.transport.nsw.gov.au/about-us/who-we-are/railcorp
6. TfNSW Services Contract Sydney Trains and NSW Trains Final – 7 June 2013
7. Operational Interface Protocols Sydney Trains and NSW Trains version 1.0, issue date 1 July 2013
8. ARTC operates in Queensland, New South Wales, Victoria, South Australia and Western Australia
9. Suburban Fleet is the fleet of rail vehicles used to service the SRN. The Intercity Fleet is the fleet of rail vehicles used on the NSW passenger network outside the SRN. For details of the rail vehicles go to www.sydneytrains.info/about/fleet/
10. The train braking system requires a constant air pressure to hold the train brakes in the release position. In the event the train braking system incurs a reduction in air pressure the brakes will automatically apply.

Network rules and operator specific procedures

The ARTC NC authorises track and train protection in accordance with Network Rules on the ARTC network, when requested by the driver. The ARTC NC, in consultation with the driver, assesses then selects the appropriate level of protection required for the task.

The network rules take precedence over operator specific procedures and foremost, operators must comply with the network rules.

The applicable rule that should have been followed in this incident was ANGE 206 – Reporting and Responding to a Condition Affecting the Network (CAN). With regards to reporting, ANGE 206 states:

‘Conditions that can or do affect the safety of operations in the ARTC NSW Network must be reported promptly to the Network Control Officer responsible for the affected portions of line.’

As an operator using the ARTC network, the moment the decision was made to put people into the rail corridor, an appropriately qualified worker, from NSW trains needed to follow this rule and report the CAN to the ARTC NC.

At the time of this incident, NSW Trains had in place RailCorp’s Operator Specific Procedure OSP 11 – Train evacuation and detraining passengers when not at stations, version 6.0 Effective date 27 May 2012.

OSP 11 states the following:

‘Detraining passengers when not at a station in non-life-threatening situations

Driver,Guard/PSS

1. Tell the Network Control Officer:

- your location

- about the situation

- how many passengers

- whether there is good access to the train

- about any passengers who cannot detrain by themselves

2. Find out how long it will take for help to arrive.

3. Agree with the Network Control Officer on:

- the protection required for the train

- whether alternative transport is required, and when it will arrive

- how to manage passengers who cannot detrain by themselves

4. Place the required protection…’

Review of voice recordings indicated that the ARTC NC and the driver of V938 did not discuss the matter of train protection during their conversations. Instead their discussions focussed on the effects to service delivery issues.

At interview, the driver of V938 said he did not contact the ARTC NC as he was of the belief that all safe working requirements were being attended to by the guard and the TCLO. The driver stated:

‘I could hear the guard discussing the matter with someone and assumed that the protection was being provided.’

At no time did the driver request an assurance from the guard nor confirm in any other way that appropriate track protection had been implemented.

The guard said during interview that he thought the TCLO was arranging train protection. The guard said he had relied on the information and knowledge of the TCLO for guidance. The guard was of the opinion the TCLO held a higher and more qualified position, and the guard made the assumption that train protection had been provided by the TCLO. However, the voice recordings of conversations between the guard and the TCLO have no mention of train protection by the guard or by the TCLO. Their conversation instead focussed on transfer of passengers to alternative transport.

ARTC had in place ANRF004 and ANGE206, the rules and procedures for reporting and responding to a condition affecting the network. These were the rules and procedures that the crew of V938 needed to be aware of and follow.

Management of change

It is evident there was confusion among the involved parties about their individual roles, level of responsibility and limits of authority with regards to ensuring passengers were detrained only when it was safe to do so.

Prior to transitioning from RailCorp to Sydney Trains and NSW Trains, the organisation completed a Services Contract and OIP to clearly define the roles, responsibilities and limits of authority for key operational staff from 1 July 2013.

Some of these changes included the following, from the Services Contract, regarding alternative travel arrangements, 6.3 (d):

‘NSW Trains will organise alternative transport required outside of the RailCorp Network.’

and from the OIP, regarding protocols for incident response and recovery, 4.2.1.2:

‘The NSW Trains Operations Shift Supervisor will be responsible for the coordination of incidents involving NSW Trains’ services in ARTC, JHR, Victorian and Queensland networks.’

Post July 2013, the RMC SM and TCLO had responsibilities for suburban fleet services on the MRN and some responsibilities for the intercity fleet services but only when they were operating on the MRN.

Responsibility for intercity service V938 resided with the NSW Trains’ DOCC SS (see Figure 5).

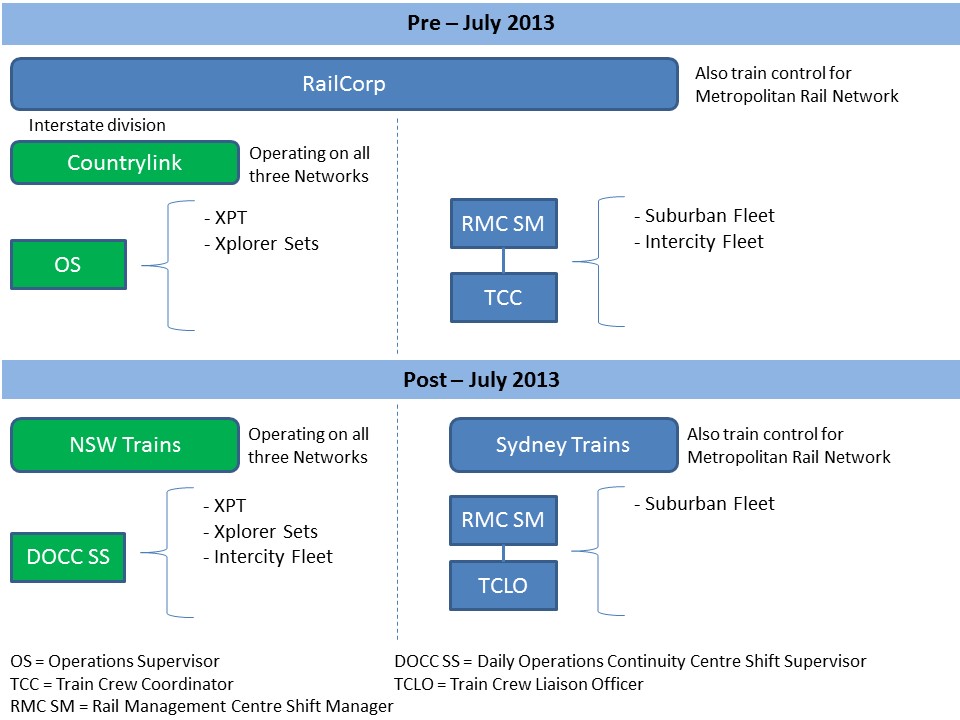

Figure 5: Operational responsibility – pre and post July 2013

Source: ATSB

In contrast, the TCLO at interview indicated the transition from RailCorp and CountryLink to Sydney Trains and NSW Trains resulted in very little change to operational staff responsibilities. Whilst position titles had changed, TCC became TCLO, the tasks associated with the position had not. The TCLO was still expected, in the interim, to provide operational support for NSW Trains’ intercity services.

Additionally, the discrepancy in understanding of roles and responsibilities between senior management and frontline staff was highlighted in the timeline account from the NSW Trains’ investigation, where;

‘(11:59) The Director of NSWT Customer Service Division and Manager Operations Planning and Coordination contacted the DOCC SS. The details of the incident were discussed. The Director asked why the crew were conversing with the RMC and not the DOCC? The DOCC SS explained that the TCLO contacts the old CityRail crew and CountryLink information comes through me.’

Further, the DOCC SS’s understanding of the transitional arrangements are reflected in his interview comments,

‘The agreement is that for CountryLink the DOCC has full operational control. RMC looks after operations for all bar CountryLink. The DOCC is not fully staffed or resourced, people are seconded out.’

The change in entities post July 2013 is a contributing factor to the confusion of associated responsibilities and limits of authority in the operations staff. As witnessed in this incident, the Sydney Trains’ RMC SM and TCLO were still intricately involved in dealing with service delivery issues on intercity fleet services (including V938).

Further evidence of the on-going legacy arrangements was apparent in the communications between the ARTC TTM and the RMC SM about potential delays to intercity services due to the breakdown of SF630.

It is likely, the changes in responsibilities had not been effectively communicated to operational staff of relevant stakeholders, such as ARTC. This resulted in a continuance of communication between parties that existed before the change.

Purpose of communication

The communication pathways between the organisations and people involved is dependent on the purpose. Particular roles have responsibilities for managing service delivery and business continuity, while others have responsibility for managing operations and safe working.

The investigation found that all safe working communications should have occurred between the ARTC NC and the driver of V938. The only evidence of a conversation between the ARTC NC and driver of V938 was when the driver called to find out how long V938 would be delayed in the Kilbride Loop. The business continuity communication, arranging alternative transport, should have taken place between the DOCC SS and the guard of V938.

At interview, the driver and the guard of V938 said they assumed the RMC were arranging protection for passengers to detrain. They made this assumption because RMC’s communications gave them the perception that train protection was also being arranged. Despite these assumptions, the train crew of V938 remained responsible for critical safe working duties (ensuring adequate protection was in place) before detraining their passengers into the rail corridor (see Figure 6).

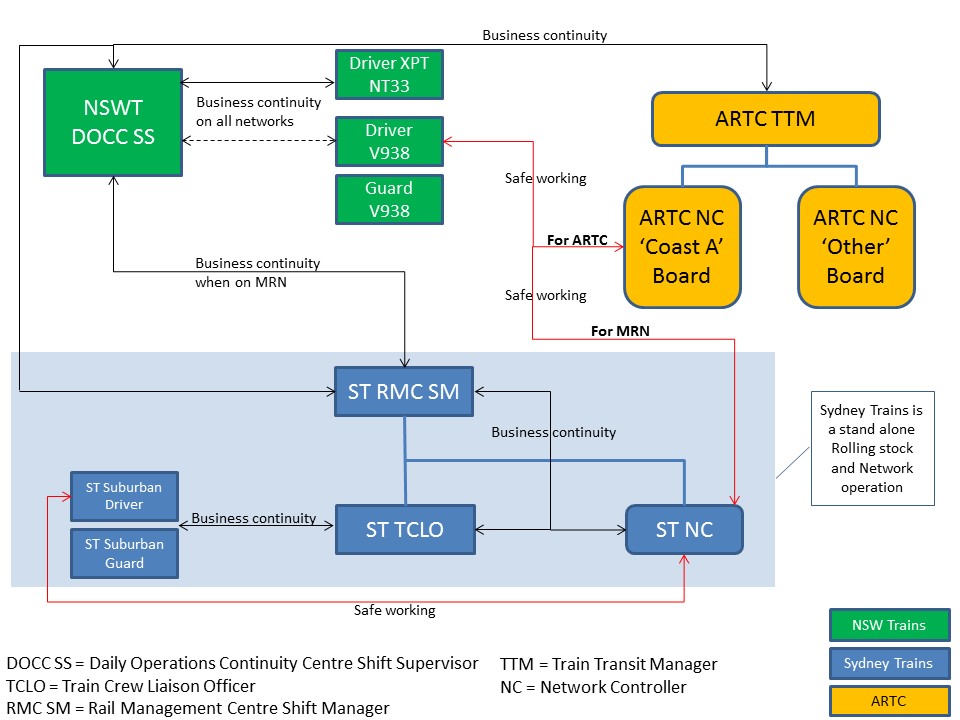

Figure 6: Communication between relevant parties

Source: ATSB

Priorities when detraining passengers

OSP 11 also highlights a number of safety factors that a train crew should consider when detraining passengers. Listing these safety factors in a procedure can be useful if the train crew have the procedure with them and they are trained to act in a manner that ensures the procedure is strictly adhered to. TWP 100 – Responsibilities of Train Crews stipulates drivers must carry OSP 11, amongst other OSP’s. On the day of the incident, the train crew drew upon their experience and training to manage the detrainment, they did not refer to a copy of OSP 11 which they should have had with them for reference.

In situations where detrainment is deemed necessary, priority should be given to moving the train to a station platform. There was a train platform at Hilldale approximately 2.9 km north of Kilbride that would have enabled the passengers to safely alight and wait for either another train or transfer from the platform to a bus.

This option was considered by the guard of V938 as evidenced in the record of phone conversation between the guard and the TCLO. The option was discounted by the guard and TCLO due to the remoteness of Hilldale station and potential difficulties for the bus driver locating the station. The station was also in the opposite direction to V938’s intended journey to Newcastle.

Had the guard and TCLO agreed to moving the train to Hilldale for detrainment, the process of obtaining a path would have involved communication with the ARTC NC, who would then be aware of V938’s intentions. Importantly, choosing to detrain at a designated station removes the safety risks associated with walking in the rail corridor. Any procedure for detrainment should preference alighting passengers at designated station platforms. The decision to detrain when not at a platform should only be considered once all other options have been exhausted or no other option exists, such as in the case of a disabled or stranded train.

At 1137, NSW Trains XPT passenger service NT33 departed Paterson towards Kilbride when the driver observed five people walking on the track ahead. The driver immediately made an emergency brake application while continuously sounding the horn and brought the train to a stand approximately 80 m from the people. There were no injuries or damage.

From the evidence available, the following findings are made with respect to the incident. These findings should not be read as apportioning blame or liability to any particular organisation or individual.

Safety issues, or system problems, are highlighted in bold to emphasise their importance. A safety issue is an event or condition that increases safety risk and (a) can reasonably be regarded as having the potential to adversely affect the safety of future operations, and (b) is a characteristic of an organisation or a system, rather than a characteristic of a specific individual, or characteristic of an operating environment at a specific point in time.

Contributing factors

• The crew of V938 detrained passengers onto the track near Kilbride without having arranged the required train protection with the ARTC Network Controller in accordance with the ARTC Network rules and procedures.
• Key operational staff in Sydney Trains and NSW Trains continued to operate under RailCorp legacy systems, even though documented transitional arrangements had re-established lines of responsibility and authority.
• The purpose of communication between key operational people was not always clearly stated nor understood leading to misunderstandings between people.

Other factors that increased risk

• Rules and procedures for detrainment do not consider the priority option of moving the train to a station or platform.

The safety issues identified during this investigation are listed in the Findings and Safety issues and actions sections of this report. The Australian Transport Safety Bureau (ATSB) expects that all safety issues identified by the investigation should be addressed by the relevant organisation(s). In addressing those issues, the ATSB prefers to encourage relevant organisation(s) to proactively initiate safety action, rather than to issue formal safety recommendations or safety advisory notices.

All of the directly involved parties were provided with a draft report and invited to provide submissions. As part of that process, each organisation was asked to communicate what safety actions, if any, they had carried out or were planning to carry out in relation to each safety issue relevant to their organisation.

The initial public version of these safety issues and actions are repeated separately on the ATSB website to facilitate monitoring by interested parties. Where relevant the safety issues and actions will be updated on the ATSB website as information comes to hand.

Train protection

Safety Issue: RO-2014-009-SI-01

The crew of V938 detrained passengers onto the track near Kilbride without having arranged the required train protection with the ARTC Network Controller in accordance with the ARTC Network rules and procedures.

Management of change

Safety Issue: RO-2014-009-SI-02

Key operational staff in NSW Trains and Sydney Trains continued to operate under RailCorp legacy systems, even though documented transitional arrangements had re-established lines of responsibility and authority.

Unclear purpose of communication

Safety Issue:  RO-2014-009-SI-03

The purpose of communication between key operational people was not always clearly stated nor understood leading to misunderstandings between people.

Processes for evacuating trains

Safety Issue: RO-2014-009-SI-04

Rules and procedures for detrainment do not consider a priority option of moving the train to a station or platform.

Sources of information

The sources of information during the investigation included:

• Bureau of Meteorology (BOM)
• NSW Trains (NT)
• NSW Trains Daily Operations Continuity Centre (DOCC)
• NSW Trains driver of NT33
• NSW Trains driver of V938
• NSW Trains Passenger Services Supervisor of NT33
• NSW Trains guard of V938
• Office of the National Rail Safety Regulator (ONRSR)
• Pacific National driver of SF630
• Rail Industry Safety and Standards Board (RISSB)
• Sydney Trains (ST)
• Sydney Trains Rail Management Centre Shift Manager (RMC SM)
• Sydney Trains Train Crew Liaison Officer (ST TCLO)
• Transport for NSW (TfNSW).

References

• ARTC Train Operating Conditions (TOC) Manual – August 2004
• ARTC voice transcripts
• NSW Trains NT33 Hasler speed tape
• NSW Trains V938 Data logger recording
• NSW Trains Daily Operations Continuity Centre Shift Supervisor (DOCC SS) voice logs
• Operational Interface Protocols Sydney Trains and NSW Trains version 1.0, issue date 1 July 2013
• Pacific National SF630 data recording
• Rail Industry Safety and Standards Board (RISSB, Dec 2010). National Guideline Glossary of Rail Terminology
• Rail Safety National Law (NSW) (2012 No 82a)
• Rail Safety National Law National Regulations (2012)
• RailCorp 2011 standard operating instruction ‘Decision for Customer Detrainment’
• RailCorp Engineering Standard − NSW Signalling SGS 01 Infrastructure Engineering Manual – Glossary of Signalling Terms
• RailCorp Operator Specific Procedure OSP 11 Train evacuation and detraining passengers when not at stations − May 2012
• RailCorp Procedure TWP 168 Securing a train on the network – July 2014
• Sydney Trains General Rule NGE 200 Walking in the Danger Zone − July 2014
• Sydney Trains Train Crew Liaison Officer (ST TCLO) voice logs
• Sydney Trains Rail Management Centre Shift Supervisor (RMC SM) voice logs
• TfNSW Services Contract Sydney Trains and NSW Trains Final – 7 June 2013.

Submissions

Under Part 4, Division 2 (Investigation Reports), Section 26 of the Transport Safety Investigation Act 2003 (the Act), the Australian Transport Safety Bureau (ATSB) may provide a draft report, on a confidential basis, to any person whom the ATSB considers appropriate. Section 26 (1) (a) of the Act allows a person receiving a draft report to make submissions to the ATSB about the draft report.

A draft of this report was provided to:

• NSW Trains (NT)
• NSW Trains Daily Operations Continuity Centre (NT DOCC)
• NSW Trains driver of NT33
• NSW Trains driver of V938
• NSW Trains Passenger Services Supervisor of NT33
• NSW Trains guard of V938
• Office of the National Rail Safety Regulator (ONRSR)
• Pacific National driver of SF630
• Australian Rail Track Corporation (ARTC)
• Sydney Trains (ST)
• Sydney Trains Rail Management Centre Shift Supervisor (RMC SM)
• Sydney Trains Train Crew Liaison Officer (ST TCLO)
• Transport for NSW (TfNSW).

Any submissions from those parties will be reviewed and where considered appropriate, the text of the draft report will be amended accordingly.
