Investigation number
AO-2016-055
Occurrence date
Location
6 km SE Southport Airport
State
Queensland
Report release date
Report status
Final
Investigation level
Short
Investigation type
Occurrence Investigation
Investigation status
Completed
Aviation occurrence type
Loss of control
Occurrence category
Accident
Highest injury level
None

What happened

On 5 June 2016, the pilot of a Cessna 206 floatplane, registered VH-NTK, was taking off from the Southport Broadwater about 6 km south-east (SE) of Southport Airport, Queensland, for a charter flight with two passengers on board.

The wind was blowing from the west-north-west (WNW) at about 18 kt, with gusts of variable speed. The take-off direction to the north-west (NW) was too restrictive due to the presence of boats in the area, so the pilot elected to begin the take-off towards the south-west (SW) (Figure 1). Taking off to the SW would be through a jet-ski course and a crosswind from the right. Once clear of the jet-ski course, the pilot intended to veer right onto a more westerly (into wind) heading to complete the take-off.

The pilot set 20° flap and left the water rudders[1] in the down position to assist with directional control at the start of the take-off run. The pilot applied full power to start the take-off run and the aircraft pitched[2] backwards into the plowing position.[3] The pilot retracted the water rudders about five seconds into the take-off run, and about two seconds later, pitched the aircraft forward from the plowing position into the step position.[4] As the aircraft pitched forward onto the step it veered to the left onto a south-south-west (SSW) heading (this increased the crosswind experienced – see textbox 4 in Figure 1). The pilot maintained the aircraft on this heading until they sighted barrels in the water that were used to mark the jet-ski course.

The pilot could not prevent the veer to the left, even with full right rudder, so after sighting the jet-ski course barrels, the pilot pitched the aircraft backwards into the plowing position to improve directional control on the water.[5] The pilot then alternated pitching the aircraft between the plow and step position in order to gradually veer to the right onto a more westerly heading (textbox 5 in Figure 1).

As the aircraft was passing a SW heading and was turning towards WSW, the right wing lifted and the aircraft rolled[6] to the left. The roll continued, despite the application of full right aileron by the pilot, until the left wing impacted the water. The aircraft rotated to the left through about 270° and the nose and propeller ploughed into the water. The aircraft then came to a stop in an upright position, facing in a westerly direction (Figure 1).

The pilot assessed the condition of the aircraft and elected not to evacuate the passengers. The aircraft was then towed to shore by a jet-ski. There were no injuries and the aircraft was substantially damaged (Figure 2 and 3).

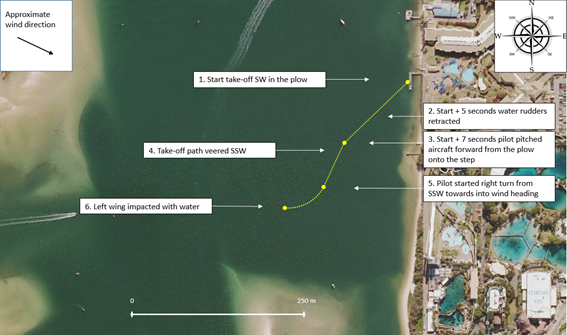

Figure 1: Approximate take-off path and key events

Approximate take-off path and key events

Source: Google earth modified by ATSB

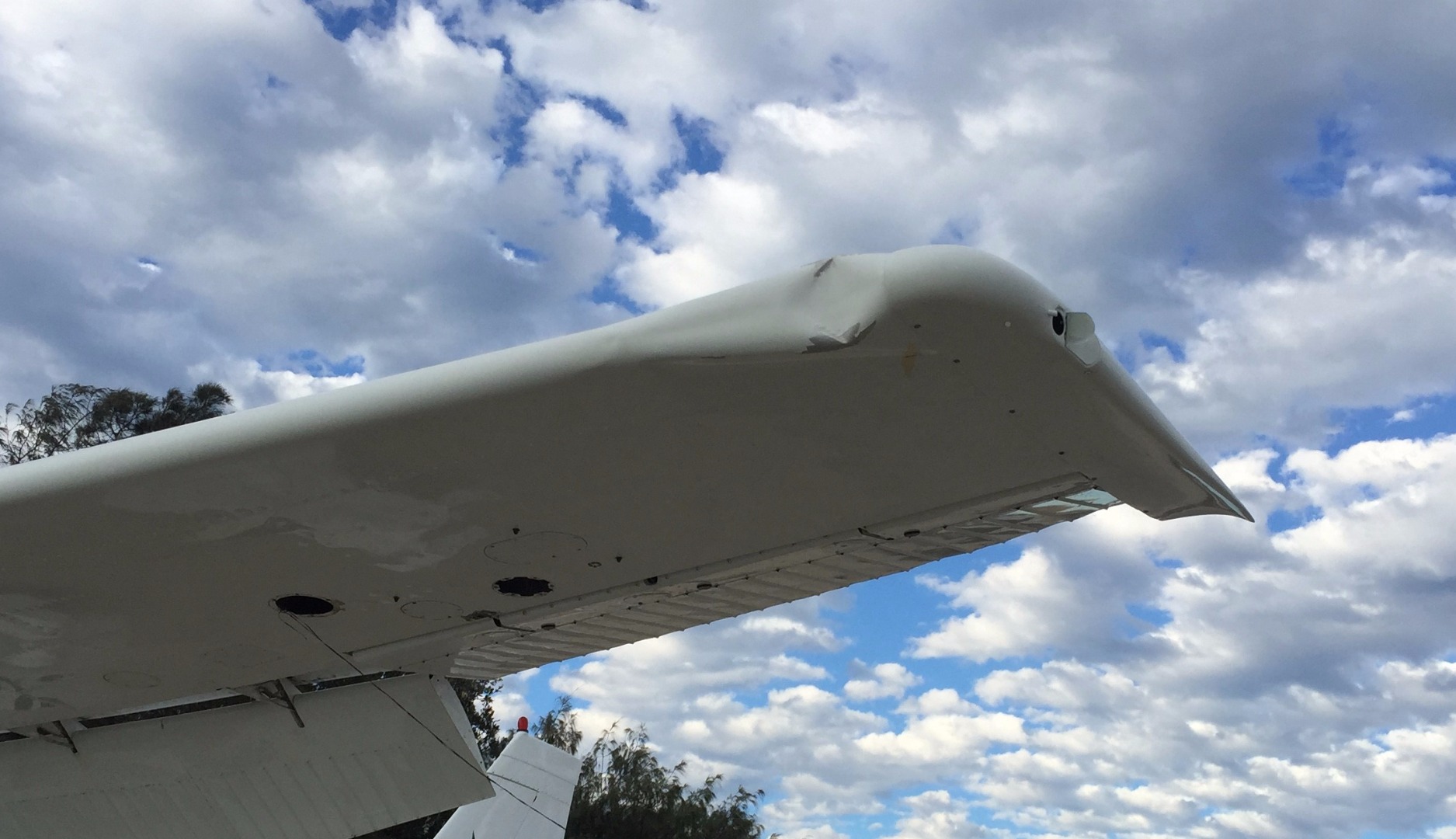

Figure 2: VH-NTK left wing damage

Figure 2: VH-NTK left wing damage

Source: Owner

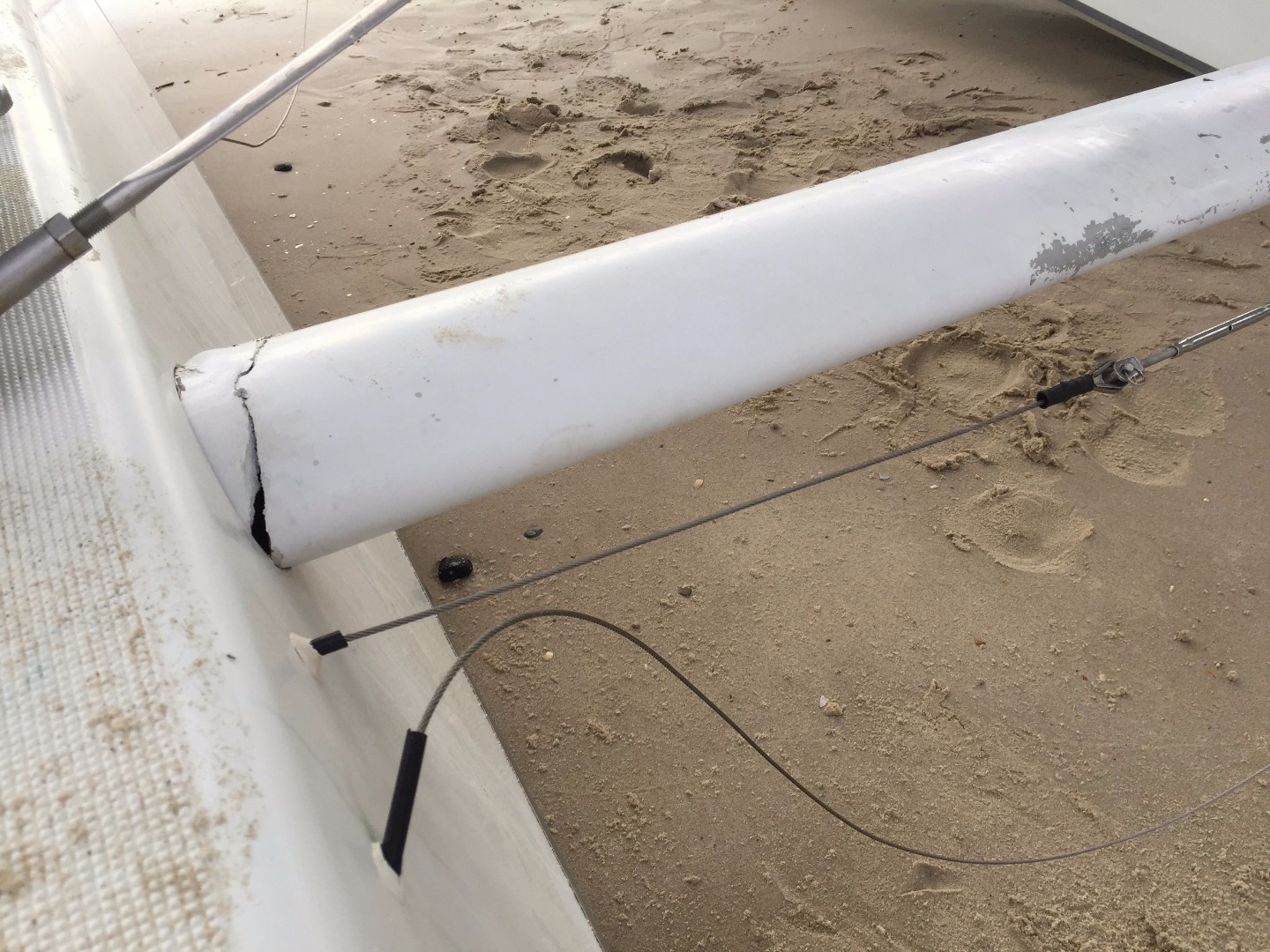

Figure 3: VH-NTK rear strut fracture (view of the left float facing forwards)

Figure 3: VH-NTK rear strut fracture (view of the left float facing forwards)

Source: Owner

Pilot comments

The pilot provided the following comments:

  • the force that veered the aircraft to the left occurred when they pitched the aircraft forward from the plow position to the step position
  • they were turning the aircraft right through SW towards WSW when it rolled
  • they were holding full into wind (right) aileron control and therefore expected the left wing to lift prior to the right wing
  • when they rolled to the left they were ‘shocked’ by the crosswind and ‘surprised’ they could not control the floatplane
  • they estimated the strength of the gust that lifted the right wing was about 8–10 kt
  • they had about 110 litres of fuel in the left wing tank and about 60 litres in the right wing tank, which may have contributed to the left roll
  • the floatplane rolled left at about 30–35 kt airspeed
  • the crosswind limit is 20 kt
  • the take-off speed is 41 kt with 20° flap set.

Left turn effect

There are four distinct propeller forces, each of which produce a left turning force on an aeroplane, as follows:

  • Torque effect: As the engine internal parts and propeller rotate clockwise, as viewed by the pilot, an equal force tries to rotate the aircraft in the opposite direction. This force places more weight and consequently more hydrodynamic drag on the left float of a floatplane.
  • Slipstream effect: The clockwise spiralling motion of the propeller slipstream means that the slipstream strikes the left side of the vertical fin. This produces a yawing[7] moment to the left.
  • P-factor: In a nose high attitude the ‘bite of air’ of the downward moving blade of the propeller is greater than the ‘bite’ of the upward moving blade, which moves the centre of thrust to the right side of the propeller disc. This also produces a yawing moment to the left.
  • Gyroscopic effect: The rotating propeller behaves like a gyroscope. As such, any time a force is applied to deflect the propeller from its plane of rotation, the resultant force is 90° ahead in the direction of rotation, and in the direction of the effective force (Figure 4). As such, the gyroscopic effect results in a yawing motion to the left when the aircraft is pitched forward from the plow position to the step position.

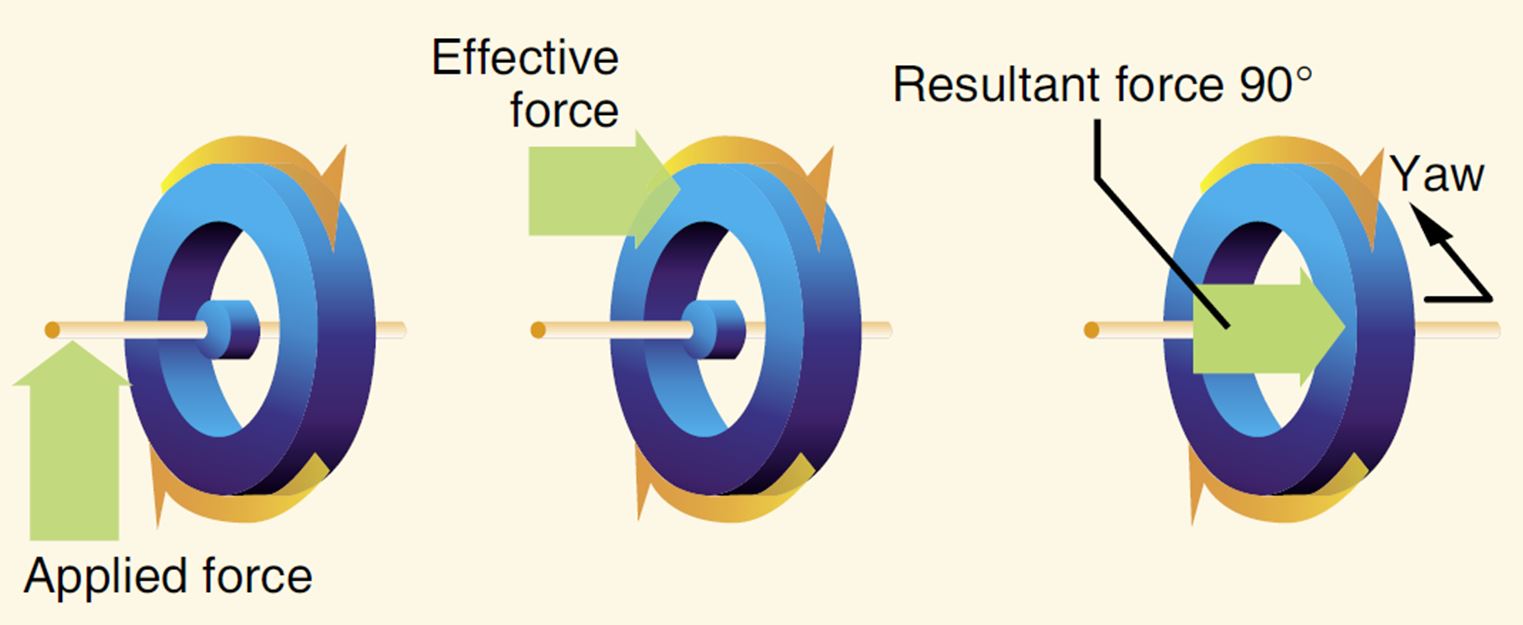

Figure 4: Gyroscopic effect

Gyroscopic effect

Source: FAA pilot’s handbook of aeronautical knowledge

Additional information is available from the United States Federal Aviation Administration (FAA) Pilot’s handbook of aeronautical knowledge, chapter 5: Aerodynamics of flight.

Crosswind take-off

According to the FAA Seaplane operations handbook, crosswinds can present special difficulties for floatplane pilots. If the aircraft turns towards the wind during a crosswind take-off, then centrifugal force will combine with the wind force to produce a rolling moment in the opposite direction to the turn (Figure 5). If strong enough, the combination of wind and centrifugal force may lift the upwind wing and submerge the downwind float, rolling the aircraft until the downwind wingtip strikes the water. This is known as a water‑loop (Figure 6).

Centre of gravity[8] location also affects the floatplane’s handling characteristics on the water. If the centre of gravity is located to one side of the centre-line, such as a fuel imbalance between the tanks, one float must support more weight and therefore displace more water than the other float, resulting in more water drag on that side (Figure 7).

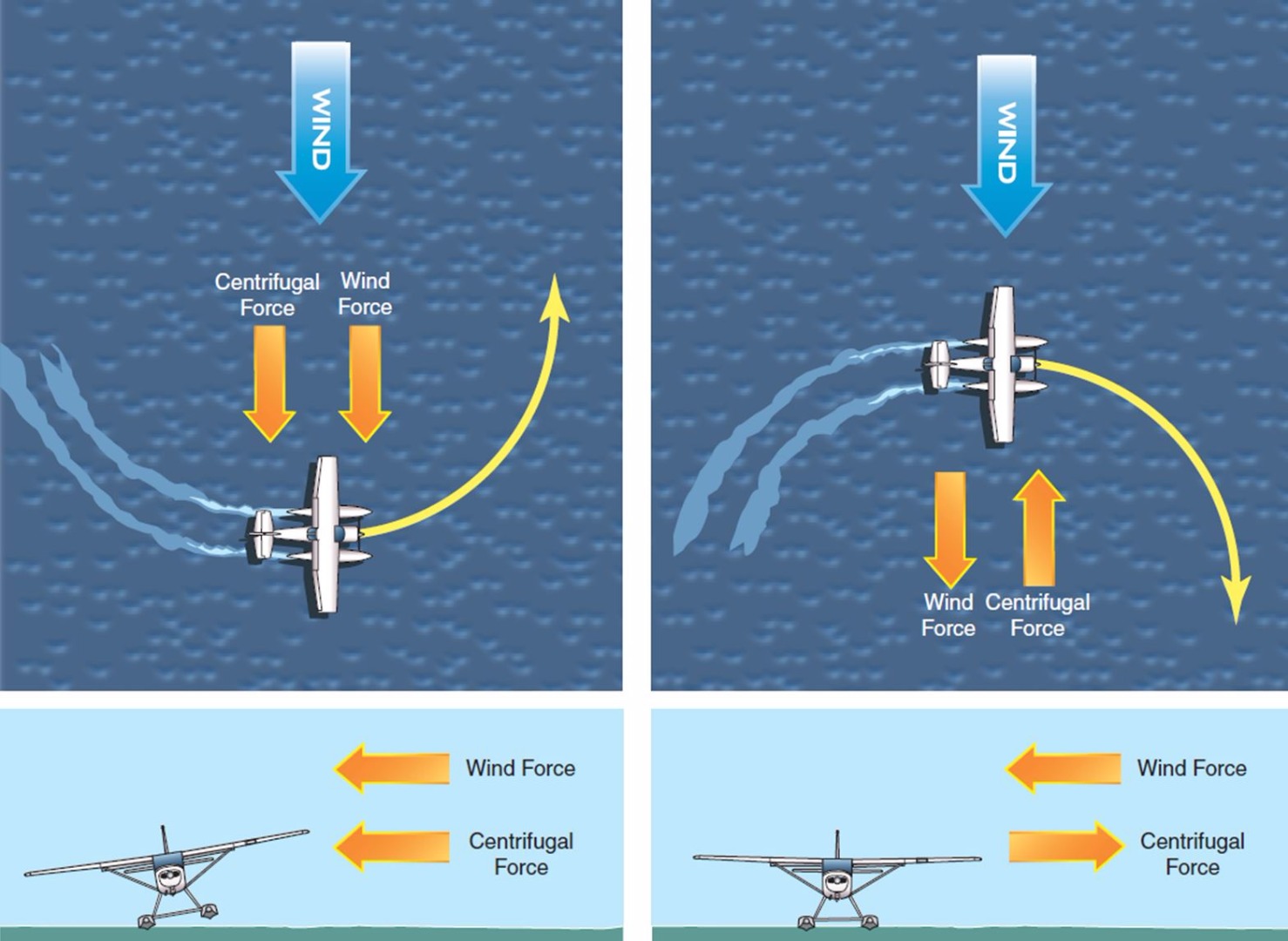

Figure 5: Effect of wind force and centrifugal force

Effect of wind force and centrifugal force

Source: FAA seaplane operations handbook

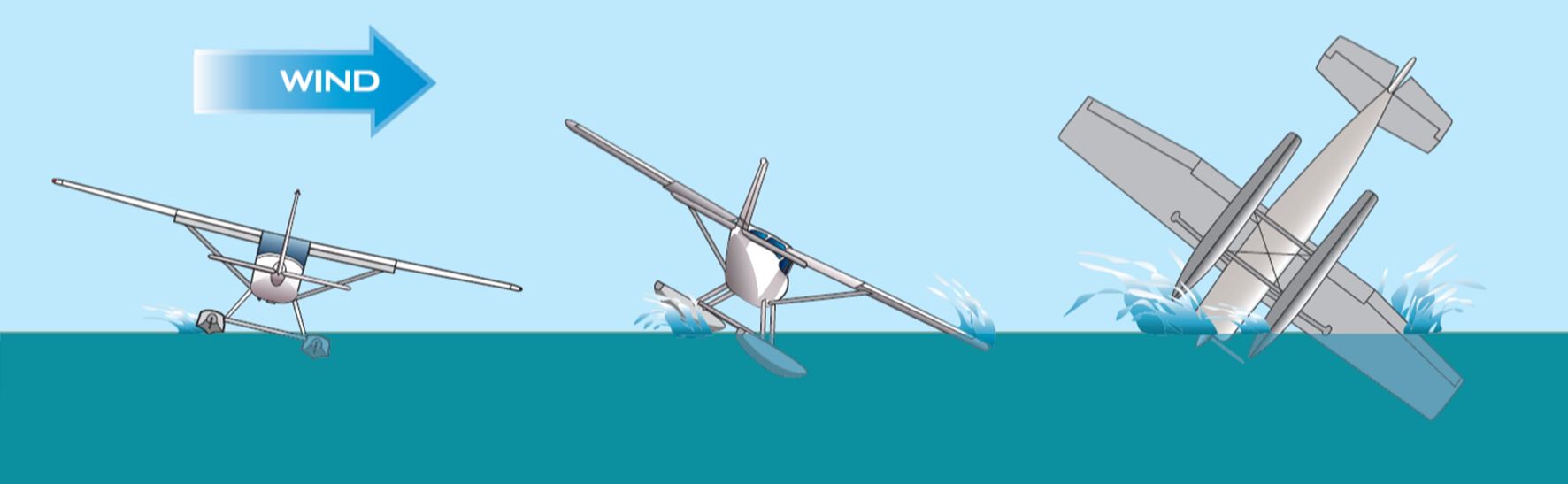

Figure 6: Water-loop

Water-loop

Source: FAA seaplane operations handbook

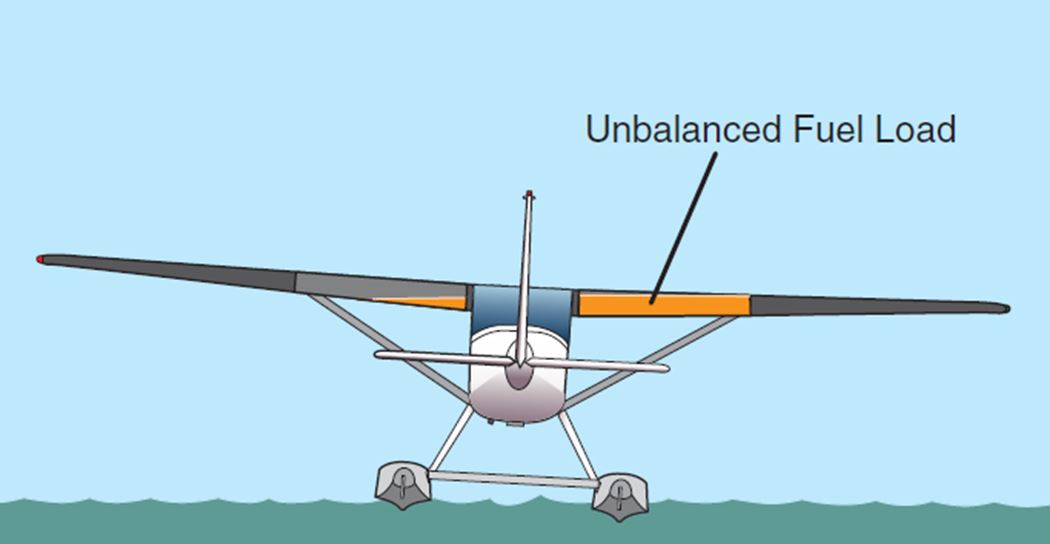

Figure 7: Effect of fuel imbalance on centre of gravity

Effect of fuel imbalance on centre of gravity

Source: FAA seaplane operations handbook

ATSB comment

The pilot reported that it was the force from the forward pitching motion of the aircraft from the nose-high plowing position to a nose-level step position that resulted in the aircraft veering left from the planned take-off path. The force that produces this motion is the gyroscopic effect. At the time of the uncommanded roll to the left the aircraft was turning right with a strong crosswind from the right and more fuel distributed in the left tank than in the right tank. These factors probably combined to elevate the risk of submerging the downwind float and lifting the upwind wing, resulting in a water-loop.

Safety action

Whether or not the ATSB identifies safety issues in the course of an investigation, relevant organisations may proactively initiate safety action in order to reduce their safety risk. The ATSB has been advised of the following proactive safety action in response to this occurrence.

Operator

As a result of this occurrence, the aircraft operator has advised the ATSB that they are taking the following safety actions:

Changes to operating procedures

The operator is updating their operations manual to incorporate the following procedural changes:

  • The channel at the operating base is orientated north-south, which restricts movements orientated east-west, therefore if the wind is forecast to gust more than 20 kt from the west, or within 30° either side of west, the take-off must be rejected.
  • If the aircraft veers to the left during the take-off run and requires full control inputs, then reject the take-off.

Safety message

This accident highlights the risk of a water-loop event during a crosswind take-off in a floatplane. The combined forces acting on a floatplane have the potential to significantly reduce the margin of control available to the pilot. The FAA Seaplane operations handbook provides several recommended crosswind take-off techniques, including the considerations associated with arcing manoeuvres during take-off. If an arcing manoeuvre is to be attempted then the FAA handbook recommends placing the centrifugal force and wind force on opposite sides, and reducing the radius of the arc as the floatplane speed increases.

Refer to the FAA Seaplane operations handbook for a detailed explanation of the recommended crosswind take-off techniques.

Aviation Short Investigations Bulletin - Issue 50

Purpose of safety investigations

The objective of a safety investigation is to enhance transport safety. This is done through:

  • identifying safety issues and facilitating safety action to address those issues
  • providing information about occurrences and their associated safety factors to facilitate learning within the transport industry.

It is not a function of the ATSB to apportion blame or provide a means for determining liability. At the same time, an investigation report must include factual material of sufficient weight to support the analysis and findings. At all times the ATSB endeavours to balance the use of material that could imply adverse comment with the need to properly explain what happened, and why, in a fair and unbiased manner. The ATSB does not investigate for the purpose of taking administrative, regulatory or criminal action.

Terminology

An explanation of terminology used in ATSB investigation reports is available here. This includes terms such as occurrence, contributing factor, other factor that increased risk, and safety issue.

Publishing information

Released in accordance with section 25 of the Transport Safety Investigation Act 2003

Published by: Australian Transport Safety Bureau

© Commonwealth of Australia 2016

Ownership of intellectual property rights in this publication

Unless otherwise noted, copyright (and any other intellectual property rights, if any) in this report publication is owned by the Commonwealth of Australia.

Creative Commons licence

With the exception of the Coat of Arms, ATSB logo, and photos and graphics in which a third party holds copyright, this publication is licensed under a Creative Commons Attribution 3.0 Australia licence.

Creative Commons Attribution 3.0 Australia Licence is a standard form licence agreement that allows you to copy, distribute, transmit and adapt this publication provided that you attribute the work.

The ATSB’s preference is that you attribute this publication (and any material sourced from it) using the following wording: Source: Australian Transport Safety Bureau

Copyright in material obtained from other agencies, private individuals or organisations, belongs to those agencies, individuals or organisations. Where you wish to use their material, you will need to contact them directly.

__________

  1. Retractable control surfaces on the back of each float that can be extended downward into the water to provide more directional control when taxiing. They are attached by cables and springs to the air rudder and operated by the rudder pedals in the cockpit.
  2. The term used to describe the motion of an aircraft about its lateral (wingtip-to-wingtip) axis.
  3. A nose high, powered taxi characterised by high water drag and an aftward shift of the centre of buoyancy. The weight of the floatplane is supported primarily by buoyancy, and partially by hydrodynamic lift.
  4. The attitude of the floatplane when the entire weight of the aircraft is supported by hydrodynamic and aerodynamic lift, as it is during high-speed taxi or just prior to take-off. This position, which is also referred to as the planing position, produces the least amount of water drag.
  5. When on the step position the keel of the floats tend to resist turning motion.
  6. Term used to describe movement of an aircraft about its longitudinal axis.
  7. Term used to describe the motion of an aircraft about its vertical or normal axis.
  8. Point through which resultant force of gravity acts, irrespective of orientation; in uniform gravitational field, centre of mass.



Aircraft Details
Manufacturer
Cessna Aircraft Company
Model
U206G
Registration
VH-NTK
Serial number
U20605862
Operation type
Charter
Sector
Piston
Departure point
Southport Broadwater, Qld
Destination
Southport Broadwater, Qld
Damage
Substantial
