Investigation number
AO-2015-028
Occurrence date
Location
Badu Island
State
Queensland
Report release date
Report status
Final
Investigation level
Short
Investigation type
Occurrence Investigation
Investigation status
Completed
Aviation occurrence category
Runway excursion
Occurrence class
Accident
Highest injury level
None

What happened

On 8 March 2015, the pilot of an Aero Commander 500 aircraft, registered VH-WZV, prepared to conduct a charter flight from Badu Island to Horn Island, Queensland, with five passengers. The aircraft had been refuelled earlier that day at Horn Island, where the pilot conducted fuel drains with no contaminants found. He had operated the aircraft for about 2 hours prior to landing at Badu Island with no abnormal performance or indications.

At about 1330 Eastern Standard Time (EST), the pilot started the engines and conducted the standard checks with all indications normal, obtained the relevant clearances from air traffic control, and taxied for a departure from runway 30. As the pilot lined the aircraft up on the runway centreline at the threshold, he performed a pre-take-off safety self-brief and conducted the pre-take-off checks. He then applied full power, released the brakes and commenced the take-off run. All engine indications were normal during the taxi and commencement of the take-off run.

When the airspeed had increased to about 80 kt, the pilot commenced rotation and the nose and main landing gear lifted off the runway. Just as the main landing gear lifted off, the pilot detected a significant loss of power from the left engine. The aircraft yawed to the left, which the pilot counteracted with right rudder. He heard the left engine noise decrease noticeably and the aircraft dropped back onto the runway. The pilot immediately rejected the take-off; reduced the power to idle, and used rudder and brakes to maintain the runway centreline.

The pilot initially assessed that there was sufficient runway remaining to stop on but, due to the wet runway surface, the aircraft did not decelerate as quickly as expected and he anticipated that the aircraft would overrun the runway. As there was a steep slope and trees beyond the end of the runway, he steered the aircraft to the right towards more open and level ground. The aircraft departed the runway to the right, collided with a fence and a bush resulting in substantial damage (Figure 1). The pilot and passengers were not injured.

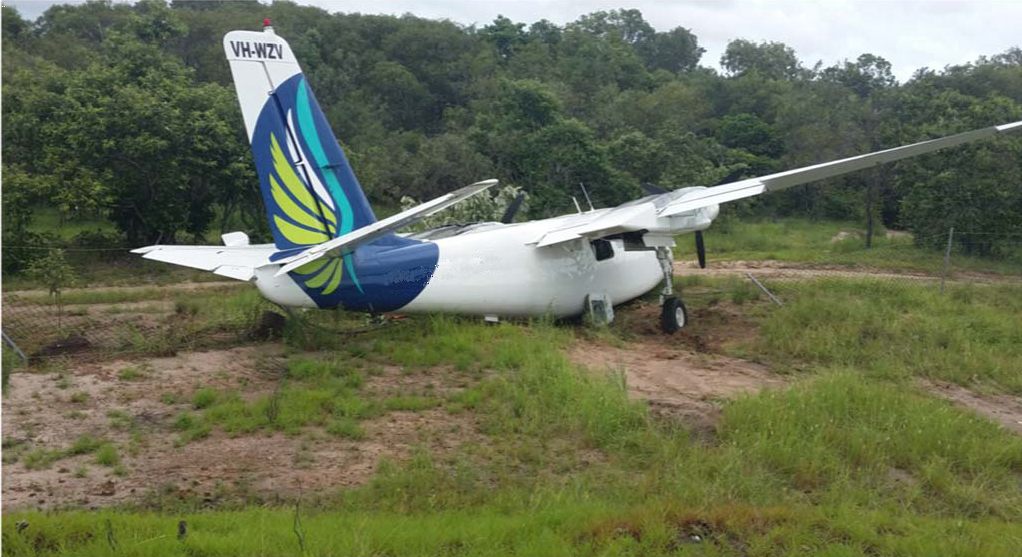

Figure 1: Damage to VH-WZV

Figure 1: Damage to VH-WZV

Source: Aircraft engineer

Engineering inspection

An engineering inspection was carried out following the incident. The engineer reported that both engines started and ran without problems and that he ran both engines to full power for sufficient time to establish that there were no obvious defects with the engines and that both engines produced full power. The magneto drop checks were within limits and fuel flows were normal. Both engines appeared to be in their normal configuration with the appropriate quantities of oil and no defects were noted.

The engineer also reported that there was adequate fuel on board the aircraft, and no contaminants were present in the fuel. The engineer verified that the propeller operation and feather checks were functional.

Pilot comments

The pilot reported that the fuel for both engines was selected to ON. At no time had either been selected to OFF, as it was not normal procedure to switch the fuel off when shutting the aircraft down.

Operator report

A report prepared by the aircraft operator, and provided to the ATSB, included the following:

  • Due to the prevailing conditions of a wet runway and the extremely powerful brakes fitted to the aircraft type, the wheels locked up and the aircraft skidded off the end of the runway. The operator stated that it was easy to aquaplane or lock the brakes in wet or emergency situations.
  • The aircraft was loaded within the weight and balance limitations and was 67 kg below the take-off weight for the available runway length, based on the approved performance charts.
  • Passengers on the flight commented on a problem with the left engine at the time of the incident.
  • Further engineering assessment of the engine and ancillaries will include fuel on board, fuel pumps (engine driven and electric), fuel control unit, magneto ignition systems, engine air intake system and other systems likely to contribute to a loss of engine power.

Safety message

In this incident the pilot had identified the safest run-off area in the event of an engine failure. Having completed a thorough pre-take-off safety briefing, following partial engine failure, the pilot was able to steer the aircraft to a relatively clear area that he had identified. This may have reduced the amount of damage the aircraft sustained, and the potential for injuries to the pilot and passengers.

The ATSB publication Avoidable Accidents No. 3 – Managing partial power loss after take-off in single-engine aircraft, states that a pre-flight safety brief, including planning a rejected take-off, gives pilots a much better chance of maintaining control of the aircraft, and helps the pilot respond immediately in the event of a partial loss of engine power.

Aviation Short Investigations Bulletin - Issue 41

Purpose of safety investigations

The objective of a safety investigation is to enhance transport safety. This is done through:

  • identifying safety issues and facilitating safety action to address those issues
  • providing information about occurrences and their associated safety factors to facilitate learning within the transport industry.

It is not a function of the ATSB to apportion blame or provide a means for determining liability. At the same time, an investigation report must include factual material of sufficient weight to support the analysis and findings. At all times the ATSB endeavours to balance the use of material that could imply adverse comment with the need to properly explain what happened, and why, in a fair and unbiased manner. The ATSB does not investigate for the purpose of taking administrative, regulatory or criminal action.

Terminology

An explanation of terminology used in ATSB investigation reports is available here. This includes terms such as occurrence, contributing factor, other factor that increased risk, and safety issue.

Publishing information

Released in accordance with section 25 of the Transport Safety Investigation Act 2003

Published by: Australian Transport Safety Bureau

© Commonwealth of Australia 2015

Ownership of intellectual property rights in this publication

Unless otherwise noted, copyright (and any other intellectual property rights, if any) in this report publication is owned by the Commonwealth of Australia.

Creative Commons licence

With the exception of the Coat of Arms, ATSB logo, and photos and graphics in which a third party holds copyright, this publication is licensed under a Creative Commons Attribution 3.0 Australia licence.

Creative Commons Attribution 3.0 Australia Licence is a standard form licence agreement that allows you to copy, distribute, transmit and adapt this publication provided that you attribute the work.

The ATSB’s preference is that you attribute this publication (and any material sourced from it) using the following wording: Source: Australian Transport Safety Bureau

Copyright in material obtained from other agencies, private individuals or organisations, belongs to those agencies, individuals or organisations. Where you wish to use their material, you will need to contact them directly.



Aircraft Details
Manufacturer
Aero Commander
Model
500
Registration
VH-WZV
Serial number
1656-11
Operation type
Charter
Sector
Piston
Departure point
Badu Island, Qld
Destination
Horn Island, Qld
Damage
Substantial
